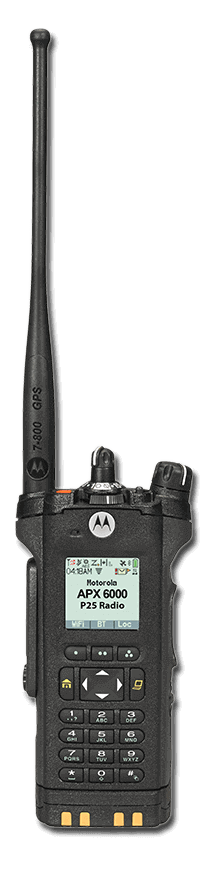

From day one, the single-band APX 6000 P25 portable radio has delivered legendary APX ruggedness and reliability, without compromising on the form factor or features required for routine activities and extreme emergencies. Now, as the ever increasing needs of public safety personnel grow, we are evolving the APX 6000 to support newer technologies like WiFi, Adaptive Audio Engine, and Bluetooth® 4.0 wireless technology. These advances help improve the operational efficiency and response time of public safety agencies while enhancing the safety of personnel and communities.
The APX 6000 is now integrated with the V300 body-worn camera, so whenever the radio enters Emergency mode, it triggers the camera to start a recording. Now you can capture critical video evidence in the moments of chaos.
Frequency Band:
700 MHz, 800 MHz, UHFR2, UHFR1, VHF
Frequency Range:
700/800 (763-776, 793-806, 806-824, 851-870 MHz)
VHF (136-174 MHz)
UHF Range 1 (380-470 MHz)
UHF Range 2 (450-520 MHz)
Power Output:
1-6 Watts Max
Number of Channels/Groups/Zones:
96 / 1,000 Channels
Standard battery chemistry type:
Lithium Ion
Battery life (based on a 5-5-90 duty cycle):
Channel spacing:
25/20/12.5 kHz
Dimensions H x W x D (with standard battery)
Length 5.47 in 139 mm
Width Push-To-Talk button 2.39 in 60.7 mm
Depth Push-To-Talk button 1.40 in 35.6 mm
Width Top 2.98 in 75.7 mm
Depth Top 1.58 in 40.1 mm
Depth Bottom of Battery 1.24 in 31.5 mm
Weight (without battery)
10.9 oz
Keypad / Keys
Model 1.5: None
Model 2.5: Backlit keypad, 3 soft keys, 4 direction Navigation key, Home and Data buttons
Model 3.5: Backlit keypad, 3 soft keys, 4 direction Navigation key, 4x3 keypad, Home and Data buttons
Display
Model 1.5: Full bitmap monochromatic LCD top display, 1 line text x 8 characters, 1 line of icons, No menu support,
Multi-color backlight
Model 2.5/3.5: Top display plus: Full bitmap color LCD display, 4 lines of text x 14 characters, 2 lines of icons,
1 menu line x 3 menus, White backlight
Operating temperature
-30 ºC to +60 ºC
Mil spec
810 C, 810 D, 810 E, 810 F, 810 G
IP Standards
IP68
Supported Frequency Bands: 7/800 MHz, VHF and UHF Range 1 and Range 2 bands
Modes and Protocols Include: Analog MDC-1200 and QCII, Digital P25, Conventional or Trunked, Smartnet / SmartZone, clear or secure, repeater or direct
Aggressive T-shape so the radio is easier to grip even with wet or slippery hands.
Top Display provides quick access to radio status information and critical notifications.
Intelligent Lighting uses 3 simple colors to alert users of critical radio events like emergency, low battery, out of range and private calls and pages.
Voice Announcement provides audible confirmation of zone/channel selections and various feature like scan, direct mode, emergency, encryption and controls lock.
Radio Profiles allows the agency to create custom user experience based on the role and mission of the user.
Aluminum Alloy Endoskeleton protects the radio's interior from water intrusion even if the outer housing is breached.
IP68 Rating ensures the radio can withstand two meters of water submersion for four hours.
MIL-STD 810 C, D, E, F, G rating ensures you can rely on your radio in the most extreme environments.
Tempered Glass protects the radio's color display user interface from scratches, impact and pressure.
Dual Latch Battery protects the radio from resetting, powering off or ejecting the battery upon impact from drops.
Multiple hardware encryption algorithms like AES, DES, ADP with up to 128 keys so sensitive information stays protected from scanners and eavesdroppers.
Over-the-air Re-key (OTAR) to efficiently update encryption keys of fielded radios over time.
P25 Radio Authentication ensures only valid users can access the system.
Two-factor Authentication allows users to securely query databases.
Adaptive Dual-sided Operation using beam-forming technology so you can talk into either side of the radio.
Adaptive Noise Suppression adjusts the audio algorithm so you can cancel out the noise as it changes in the environment.
Adaptive Speaker Equalization adjusts the 3 watt loud speaker settings based on volume selection so the sound is optimized for talker authenticity at lower volumes and speech intelligibility at higher volumes.
Adaptive Gain Control adjusts microphone gain based on how loud you talk into the radio to ensure a consistent audio level on the receiving end.
Adaptive Windporting engages a third microphone in order to cancel out wind noise.
Update your radio fleet software more efficiently without interrupting voice communications or waiting for idle radios.
Up to 20 WiFi Networks can be provisioned in the radio so that users can seamlessly receive radio software updates at facility WiFi access points or in the field via WiFi hot spots.
GPS Outdoor Personnel Tracking shares your personnel's location, resulting in more efficient task assignment and enhanced officer safety.
Mission Critical Wireless Bluetooth 4.0 places a wide range of wireless accessories at your disposal and provides personnel with an added level of security by improving response time in emergencies. With Emergency Find Me, a Bluetooth-enabled beacon signal guides other Bluetooth-enabled APX radios within range to assist the user in distress.
Mission Critical Geofence ensures fast communication and collaboration across multiple departments arriving on a scene by automatically placing first responders in the same talkgroup when they enter an agency-defined virtual barrier.
 | NAG4000 GPS Antenna (Directly connected to radio when a public safety microphone is used) |
 | PMAF4002 700/800 Public Safety Microphone Only Stubby Antenna |
 | PMNN4485 IMPRES 2 Li-Ion 2550 mAh Battery, IP68 Rugged |
 | PMNN4486 IMPRES 2 Li-Ion 3400 mAh Battery, IP68 Rugged |
 | PMNN4487 IMPRES 2 Li-Ion 4850 mAh Battery, IP68 Rugged, -30ºC Rated |
 | PMNN4494 IMPRES 2 Li-Ion 5100 mAh Battery, IP68 Rugged |
 | PMNN4439 APX Clamshell Battery Pack (requires 12 AA Alkaline batteries, not included), Submersible Battery-IP57 |
 | PMNN4547 IMPRES 2 Li-Ion 3100 mAh Battery, IP68 Rugged |
 | PMNN4573 IMPRES 2 Li-Ion 4600 mAh Battery, IP68 Rugged |
 | NTN2570 Mission-Critical Wireless Earpiece with 12” cable and push-to-talk pod |
 | NTN2571 Mission-Critical Wireless push-to-talk pod |
 | NNTN8442 Mission-Critical Wireless Remote Control Keyfob with programmable buttons |
 | PMLN7052 1- Wire Surveillance kit with Translucent Acoustic tube for Wireless PTT Pods |
 | NNTN8294 1- Wire Earbud for Wireless Push-to-Talk pod with 11.5” cable, Black |
 | NNTN8295 1- Wire Earbud for Wireless Push-to-Talk pod with 45” cable, Black |
 | NNTN8296 Covert Audio Kit for Mission-Critical Wireless PTT Pod |
 | NNTN8385 Y-Adapter and Retention Hook for Mission-Critical Wireless Push-to-Talk Pod |
 | RLN4920 neck loop for Discreet Earpiece Kit |
 | NNTN8434 Accessory Kit, Completely Discreet Wireless Surveillance Kit |
 | NTN2572 Replacement Wireless Earpiece 12-inch cable |
 | RLN6489 Mission-Critical Wireless Covert Pack-N-Go Kit, Basic. Kit includes: NNTN8296 Basic Mission-Critical Wireless Covert Kit, NTN2571 Mission-Critical Wireless Push-to-Talk (PTT) Pod and NNTN8442 Mission Critical Wireless Remote Con-trol Unit |
 | RLN6501 Mission-Critical Wireless Covert Pack-N-Go Kit, Advanced. Kit includes: All contents of Covert Pack-n-Go Kit plus RLN4922 Completely Discreet Earpiece Kit and NNTN8385 Wireless neck loop Y-adapter |
 | PMLN5709 Carry Holder for 1.5, 2.5 and 3.5 Model Radios |
 | PMLN6802 Molded Nylon carry case with quick disconnect swivel and adjustable lanyard |
 | PMLN5658 Leather Carry Case with 3” Fixed Belt Loop for NNTN7038, PMMN4403 and NNTN8092 Batteries |
| PMLN5660 Leather Carry Case with 3" Fixed Belt Loop for NNTN7033 and NNTN7034 Batteries |
 | PMLN5657 Leather Carry Case with D-Rings and 2.75” Swivel Belt Loop for NNTN7038, PMMN4403 and NNTN8092 Batteries |
| PMLN5659 Leather Carry Case with D-Rings and 2.75” Swivel Belt Loop for NNTN7033 and NNTN7034 Batteries |
 | NTN8266 2.5” Hard Plastic Belt Clip (not compatible with UHF Portable Radios) |
 | HLN6875 3” Hard Plastic Belt Clip |
 | HLN6602 Universal Chest Pack with Radio Holder, Pen Holder and Velcro-Secured Pouch |
 | RLN4570 Break-a-Way Chest Pack with Radio Holder Pen Holder and Velcro-Secured Pouch |
 | PMLN5408 Replacement 2.75” Leather Swivel Belt Loop |
 | PMLN5409 Replacement 3” Leather Swivel Belt Loop |
 | 4200865599 1.75” Wide Leather Belt |
 | NTN5243 Adjustable Nylon Carrying Strap |
 | NNTN8844 IMPRES 2 Multi-Unit Fast Charger with 6 Displays and 6 Integrated USB Charging Ports, 100-240V |
 | NNTN8860 IMPRES 2 Single-Unit Fast Charger, 115V |
| NNTN8860_TAA IMPRES 2 Single-Unit Fast Charger, 115V, TAA compliant |
 | NNTN8863 IMPRES 2 Single-Unit Fast Charger, 100-240V |
 | NLN7967 Wall Mount Bracket for IMPRES Multi-Unit Chargers NNTN8844 |
 | NNTN7624 IMPRES Single-Unit Rapid Rate Vehicular Charger |
 | NNTN8527 APX Vehicular Adapter includes Fused Power Cable, 2 Keys for the Lock, Screws for Attaching Vehicular Adapter to the Trunnion Mounting Bracket & Quick Start Guide. |
 | RLN6434 Travel Charger with voltage regulated vehicular charger adapter, custom charger base, mounting bracket, and coil cord |
 | PMLN5653 IMPRES Ear Microphone with Bone Conduction and programmable button, black |
 | 0180300E25 Earguard with Adjustable Loop |
 | PMLN6125 1-Wire Receive-only earpiece, black |
 | PMLN6126 1-Wire Receive-only earpiece, beige |
 | PMLN6127 IMPRES 2-Wire Surveillance Kit, programmable button, black |
 | PMLN6128 IMPRES 2-Wire Surveillance Kit, programmable button, beige |
 | PMLN6129 IMPRES 2-Wire Surveillance Kit with translucent tube, programmable button, black |
 | PMLN6130 IMPRES 2-Wire Surveillance Kit with translucent tube, programmable button, beige |
 | PMLN6123 IMPRES 3-Wire Surveillance Kit with translucent tube, programmable button, black |
 | PMLN6124 IMPRES 3-Wire Surveillance Kit with translucent tube, programmable button, beige |
 | ZMN6038 2-Wire Surveillance Kit, with Extra Loud Earpiece, Beige, Hirose Connector. Requires NNTN7869 Hirose Adapter |
| ZMN6039 3-Wire Surveillance Kit, with Extra Loud Earpiece, Beige, Hirose Connector. Requires NNTN7869 Hirose Adapter |
 | ZMN6032 2-Wire Surveillance Kit, Beige, Hirose Connector. Requires NNTN7869 Hirose Adapter |
 | ZMN6031 3-Wire Surveillance Kit, Beige, Hirose Connector. Requires NNTN7869 Hirose Adapter |
 | BDN6664 1-Wire Receive-Only Surveillance Kit with Earpiece, Beige, 3.5mm Threaded. Requires BDN6783 |
 | BDN6726 1-Wire Receive-Only Surveillance Kit with Earpiece, Black, 3.5mm Threaded. Requires BDN6783. |
| BDN6665 1-Wire Receive-Only Surveillance Kit with Extra-Loud Earpiece, Beige, 3.5mm Threaded. Requires BDN6783. |
 | BDN6727 1-Wire Receive-Only Surveillance Kit with Extra-Loud Earpiece, Black, 3.5mm Threaded. Requires BDN6783. |
| RLN5314 1-Wire Receive-Only Surveillance Kit with Translucent Tube, Beige, 3.5mm Threaded. Requires BDN6783 |
 | RLN5313 1-Wire Receive-Only Surveillance Kit with Translucent Tube, Black, 3.5mm Threaded. Requires BDN6783 |
 | RLN5312 2-Wire Surveillance Kit with Translucent Tube, Black, 3.5mm Threaded. Requires BDN6783 |
| BDN6666 1-Wire Receive-Only Surveillance Kit with Volume Control and Earpiece, Beige, 3.5mm Threaded. Requires BDN6783. |
| BDN6728 1-Wire Receive-Only Surveillance Kit with Volume Control and Earpiece, Black, 3.5mm Threaded. Requires BDN6783. |
| BDN6667 2-Wire Surveillance Kit with Earpiece, Beige, 3.5mm Threaded. Requires BDN6783. |
 | BDN6669 2-Wire Surveillance Kit with Extra-Loud Earpiece, Beige, 3.5mm Threaded. Requires BDN6783 |
 | BDN6731 2-Wire Surveillance Kit with Extra-Loud Earpiece, Black, 3.5mm Threaded. Requires BDN6783. |
 | BDN6668 3-Wire Surveillance Kit with Earpiece, Beige, 3.5mm Threaded. Requires BDN6783. |
 | BDN6730 3-Wire Surveillance Kit with Earpiece, Black, 3.5mm Threaded. Requires BDN6783. |
 | BDN6670 3-Wire Surveillance Kit with Extra-Loud Earpiece, Beige, 3.5mm Threaded. Requires BDN6783. |
 | BDN6732 3-Wire Surveillance Kit with Extra-Loud Earpiece, Black, 3.5mm Threaded. Requires BDN6783. |
 | PMLN5101 IMPRES Temple Transducer with boom microphone and inline push-to-talk 7580384M19 - Replacement rubber temple cover (1 pair) |
 | PMLN5096 Earset D-Shell |
 | PMLN5102 Ultra Lite Headset |
 | RMN5058 Lightweight Over-the-Head Headset single muff with in-line push-to-talk and boom mic REX4648 - replacement foam earpad and microphone cover kit |
 | PMLN5275 Heavy-Duty Behind-the-Head Headset with Noise-Canceling boom microphone, noise reduction = 24dB |
 | RLN6490 XBT Operations-Critical Wireless Behind-the-Neck Headset |
 | RLN6491 XBT Operations-Critical Wireless Headband Style Headset |
 | RMN5137 MT Series Over-The-Head Headset, direct radio connect PELTOR PART NUMBER: MT7H79A-C5063-34 |
 | RMN5138 MT Series Neckband Headset, direct radio connect PELTOR PART NUMBER: MT7H79B-C5063-34 |
 | RMN5139 MT Series Hard Hat Attached Headset, direct radio connect PELTOR PART NUMBER: MT7H79P3E-C5063-34 |
 | PMLN6088 MT Series Over-the-Head Headset with Nexus connector Requires PTT Adapter PMLN6095 PELTOR PART NUMBER: MT7H79A-34 |
 | RLN6477 MT Series Neckband Headset with Nexus connector Requires PTT Adapter PMLN6095 PELTOR PART NUMBER: MT7H79B-34 |
 | RMN4051 MT Series Hard Hat Attached with Nexus connector Requires PTT Adapter PMLN6095 PELTOR PART NUMBER: MT7H79P3E-34 |
 | RMN4052 TacticalPro Series Over-The-Head Headset with Nexus connector Requires PTT Adapter PMLN6095 PELTOR PART NUMBER: MT15H7A-34 |
 | RMN5135 TacticalPro Series Neckband Headset with Nexus connector Requires PTT Adapter PMLN6095 PELTOR PART NUMBER: MT15H7B-07-34 |
 | RMN4053 TacticalPro Series Hard Hat Attached with Nexus connector Requires PTT Adapter PMLN6095 PELTOR PART NUMBER: MT15H7P3E-34 |
 | PMLN6095 PTT Nexus Adapter PELTOR PART NUMBER:FL5063-34 |
 | RMN4055 HT Series Listen Only Over-The-Head Headset with 3.5mm NON threaded connector APX radio requires RSM: PMMN4062, PMMN4069 or PMMN4084 PELTOR PART NUMBER: HTM79A-34 |
 | RMN5132 HT Series Listen Only Neckband Headset with 3.5mm NON threaded connector APX radio requires RSM: PMMN4062, PMMN4069 or PMMN4084 PELTOR PART NUMBER: HTM79B-34 |
 | RMN5133 HT Series Listen Only Hard Hat Attached Headset with 3.5mm NON threaded connector APX radio requires RSM: PMMN4062, PMMN4069 or PMMN4084 PELTOR PART NUMBER: HTM79P3E-34 |
 | PMLN6765 Tactical PTT/VOX Interface Module |
 | PMLN6827 Tactical PTT Only Interface Module |
 | PMLN6766 Tactical Boomless Temple Transducer (requires Interface Module PMLN6765 or PMLN6827) |
 | PMLN6828 Tactical Throat Microphone (requires Interface Module PMLN6765 or PMLN6827) |
 | PMLN6829 Tactical Ear Microphone (requires Interface Module PMLN6765 or PMLN6827) |
 | PMLN6833 Tactical Temple Transducer / Boom Mic (requires Interface Module PMLN6765 or PMLN6827) |
 | PMLN6767 Tactical Remote Body PTT (for use with Interface Module PMLN6765 or PMLN6827) |
 | PMLN6830 Tactical Remote Ring PTT (for use with Interface Module PMLN6765 or PMLN6827) |
| NNTN8575A Xtreme Temperature Cable High Impact Green Housing |
 | NNTN8575ABLK Xtreme Temperature Cable Black Housing |
 | NNTN8575AYLW Xtreme Temperature Cable Yellow Housing |
 | NNTN8203A Standard Cable High Impact Green Housing |
 | NNTN8203ABLK Standard Cable Black Housing |
 | NNTN8203AYLW Standard Cable Yellow Housing |
 | NMN6271 IMPRES XP RSM with Dual Mic Noise Suppression, Volume Control, 1-Programmable Button and Orange Button. Rugged, Submersible (IP68) |
 | NMN6274 IMPRES XP RSM with Dual Mic Noise Suppression, 3.5mm threaded jack, Volume Control, 1-Programmable Button and Orange Button (IP55) |
 | RLN6554 Wireless RSM with Battery, Clip (RLN6544) and Dual Unit Charger (PMLN7120) |
 | HMN4104 IMPRES Display RSM with Audio Jack, Channel Selector, Volume Control, 2-Programmable Buttons and Orange Button. Windporting, Rugged, Submersible (IP68) |
 | HMN4103 IMPRES Display RSM with Audio Jack, Volume Control, 2-Programmable Buttons and Orange Button. Windporting, Rugged, Submersible (IP68) |
 | HMN4101 IMPRES RSM with Audio Jack, Volume Control, 2-Programmable Buttons and Orange Button. Windporting, Rugged, Submersible (IP68) |
 | PMMN4083 IMPRES RSM Windporting, Rugged (IP68) |
 | PMMN4084 IMPRES RSM with 3.5mm Threaded and NON-Threaded Audio Jack and Orange Button. Noise Canceling (IP54) NOT INTENDED FOR FIRE MARKETS |
 | PMMN4099 IMPRES Windporting RSM with Volume Toggle Switch, Orange Button, 3.5mm NON-Threaded Jack (IP55) |
 | PMMN4062 IMPRES RSM with NON-Threaded Audio Jack, Orange Button, Noise Canceling (IP54) NOT INTENDED FOR FIRE MARKETS |
 | PMMN4065 IMPRES RSM with Volume Toggle Switch, Orange Button and 1-Programmable Button, Windporting (IP57) |
 | PMMN4069 IMPRES RSM with NON-Threaded Audio Jack, Windporting (IP55) |
 | PMMN4061 IMPRES Windporting Public Safety Microphone (30 inch cable) with 3.5mm NON-Threaded Audio Jack, Volume Control, Orange Button. PSM Antenna required. Large (IP55). VHF not supported. |
 | PMMN4060 IMPRES Windporting Public Safety Microphone (24 inch cable) with 3.5mm NON-Threaded Audio Jack, Volume Control, Orange Button. PSM Antenna required. Large (IP55). VHF not supported. |
 | PMMN4059 IMPRES Windporting Public Safety Microphone (18 inch cable) with 3.5mm NON-Threaded Audio Jack, Volume Control, Orange Button. PSM Antenna required. Large (IP55). VHF not supported. |
