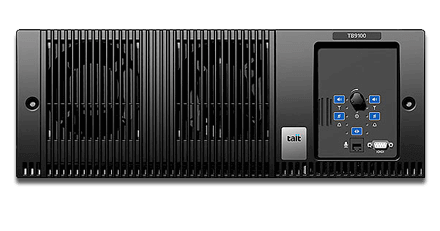

The TB8100 is a high performance base station/repeater designed to cope with the harshest of operational environments. Featuring remote monitoring and configuration as well as a powerful local control application it is available in 5, 50 and 100W configurations in a range of popular frequency bands.
Frequency band:
VHF, UHF, 700/800 MHz, 900MHz
Frequency range:
VHF: 136-156MHz, 148-174MHz, 174-193MHz, 193-225MHz
UHF: 380-420MHz, 400-440MHz, 440-480MHz, 470-520MHz
700/800: 762-776/580-870MHz(Tx),792-824MHz (Rx)
900: 896-912MHz (Rx), 927-941MHz (Tx)
Power Output:
100 W
Number of Channels/Groups/Zones:
255
Channel spacing:
12.5kHz, 20kHz, 25kHz
Dimensions W x D x H
19 x 15 x 7in (480 x 390 x 180mm) 4URack Space
Weight
Single 5/50W: 45.0lb (21.0kg)
Single 100W: 47.0lb (22.0kg)
Dual 5/50W: 61.0lb (28.0kg)
Operating temperature
-22°F to 140°F (-30°C to 60°C)
Complete remote operation
With many remote monitoring options, the TB8100 is ideal for isolated sites. Users can manage more than 150 parameters remotely with TB8100 Service Kit software.
Advanced diagnostics
Monitor your entire network from a central location with the TB8100 alarm reporting option. This means you do not need to manually connect to each base station/repeater to check it, minimizing maintenance time and costs.
Excellent RF specifications
Outstanding specifications for selectivity, sensitivity and adjacent channel interference make the TB8100 ideal for use in high-noise environments.
Tough design
Specified to operate continuously at full power, at up to 15,000ft (4,572m) and as high as 140°F (60°C) in temperature. Large heatsinks mean that no spacing is required between base stations/repeaters.
Flexible software
The advanced profiles option gives you precise control over your channel configuration and access to the most advanced base station/repeater features.
Transportable option
Utilizing the same reliable software-based platform that has made the TB9100 industry leaders, the lightweight analog and digital transportable repeaters are packaged in ruggedized cases. The transportable repeater includes a lightning arrester and the pelican case is available in multiple colors to suit the application.
